X-Ray

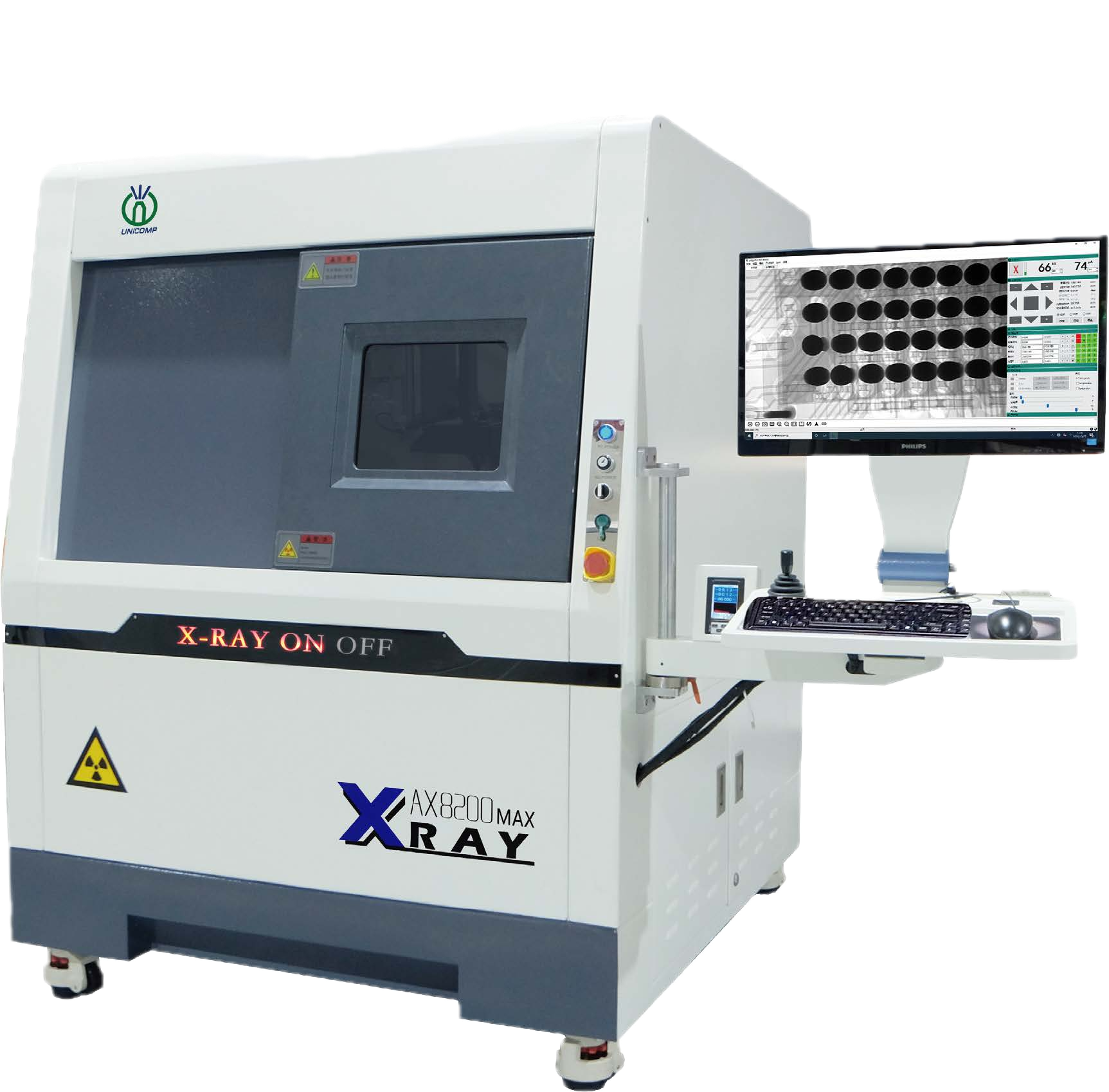

Advanced X-Ray Inspection for Electronics and Industrial Applications

The AX9100MAX is a high-performance off-line X-ray inspection system designed for precise analysis of electronic components, including BGAs, CSPs, Flip Chips, LEDs, semiconductors, and more. Engineered for versatility, it accommodates a wide range of applications with powerful imaging and automated inspection capabilities.

Equipped with a 130kV sealed X-ray source, the AX9100MAX delivers exceptional penetration power, making it ideal for inspecting soft metals, aluminum parts, heat exchangers, and battery components.

Its large inspection table supports high-precision and fast movement, thanks to servo motors, an advanced camera system, and a laser pointer. The system enables automated inspection routines, ensuring repeatable tasks, precise evaluation, and automatic decision-making for enhanced efficiency.

The BGA and THT inspection process is seamless with a tilted viewing capability of up to 60° and fixed-point tracing, providing detailed analysis of solder joints and hidden defects.

Key Features:

• Sealed X-Ray Source (0-130kV, 65W Max Power Output) – Ensures low-maintenance, high-power performance
• 60° Tilted View with Fixed-Point Traceability – Ideal for BGA and THT inspections
• Automated Inspection Routines – Enhances repeatability and decision-making
• High Geometrical Magnification (up to 1600x) – Enables detailed defect analysis
• Intelligent Image Processing Software – Provides enhanced imaging clarity
• Large Turntable (Max Load Diameter: 620mm) – Supports inspection of large PCBs and components

With its cutting-edge technology and intelligent automation, the AX9100MAX is the ultimate solution for high-precision X-ray inspection, ensuring reliability, accuracy, and efficiency in electronic manufacturing and industrial applications.

Compact & Versatile X-Ray Inspection System

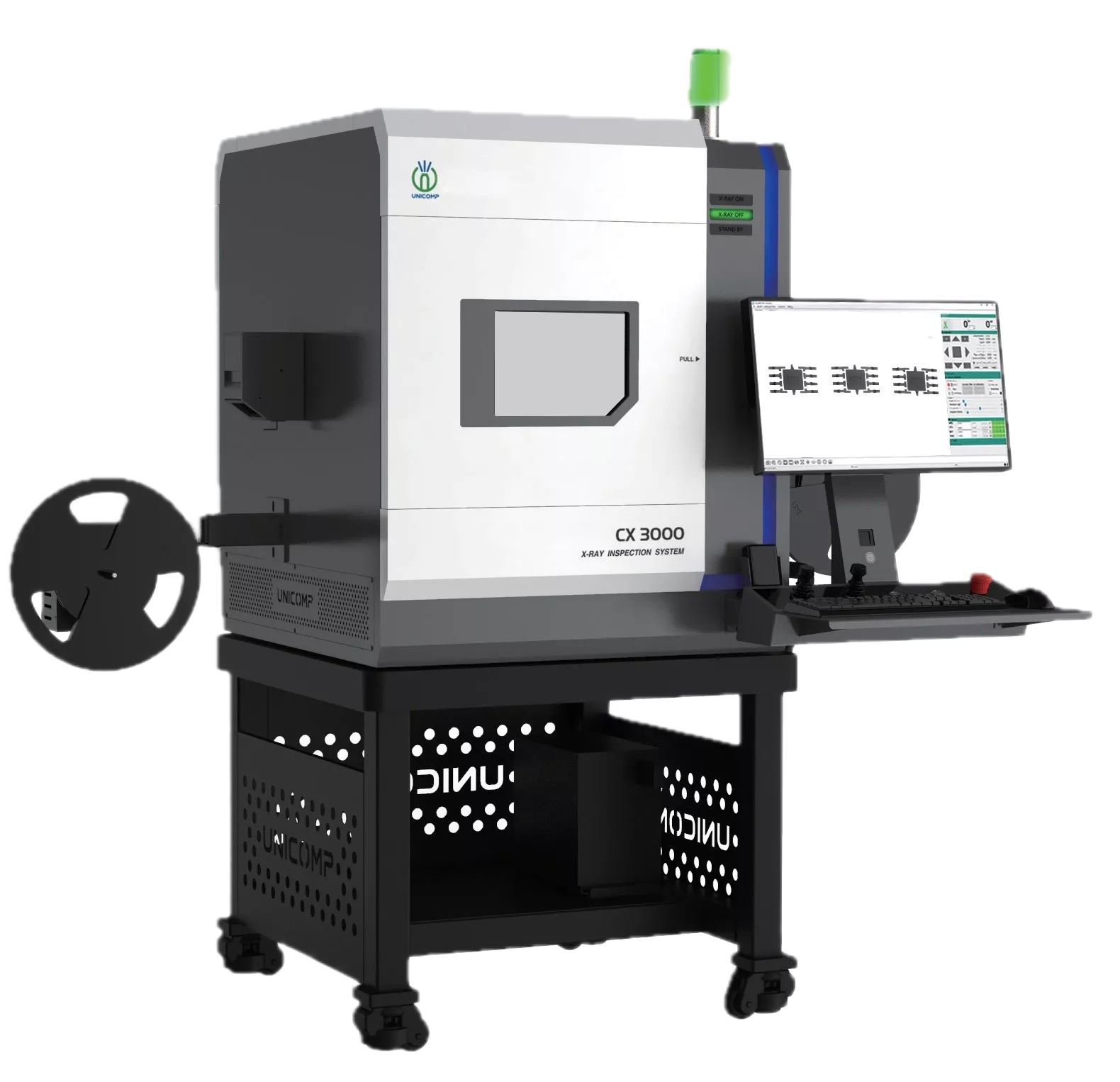

The continuous advancement of the modern electronics industry demands increasingly efficient and precise inspection solutions. The Unicomp CX3000 is a compact, desktop X-ray inspection system that sets a new standard in quality control with its unique 2-in-1 functionality.

This system can switch from PCB inspection to automated component analysis within minutes, significantly reducing setup time. It automatically detects tape or tray modes, ensuring seamless operation. Additionally, Unicomp’s proprietary sealed X-ray tube guarantees long-lasting performance and reliability.

the CX3000 is designed for automatic defect analysis with an integrated rewinding mechanism, enabling high-precision fault detection.

The Unicomp CX3000 stands out for several reasons:

Key features

• 2-in-1 X-ray Inspection System – A single device for both tape-mounted components and PCB solder joint analysis
• High-Precision Positioning – Upgraded from belt drive to servo motor, achieving ±50 µm positioning accuracy
• Automatic Mode Switching – Instantly transitions between worktable and reel inspection, minimizing manual setup and reducing human errors
• Advanced Optical Imaging – 19.5x magnification and 32×32 mm field of view (FOV) ensure high visibility and precise defect detection
• Flexible Component Inspection – Supports reel widths from 8 mm to 44 mm, covering approximately 95% of market-available tapes
• AI-Powered Automated Defect Detection & Evaluation – Uses machine learning for superior fault analysis

X-Ray Component Counter for Fast & Accurate Inventory Management

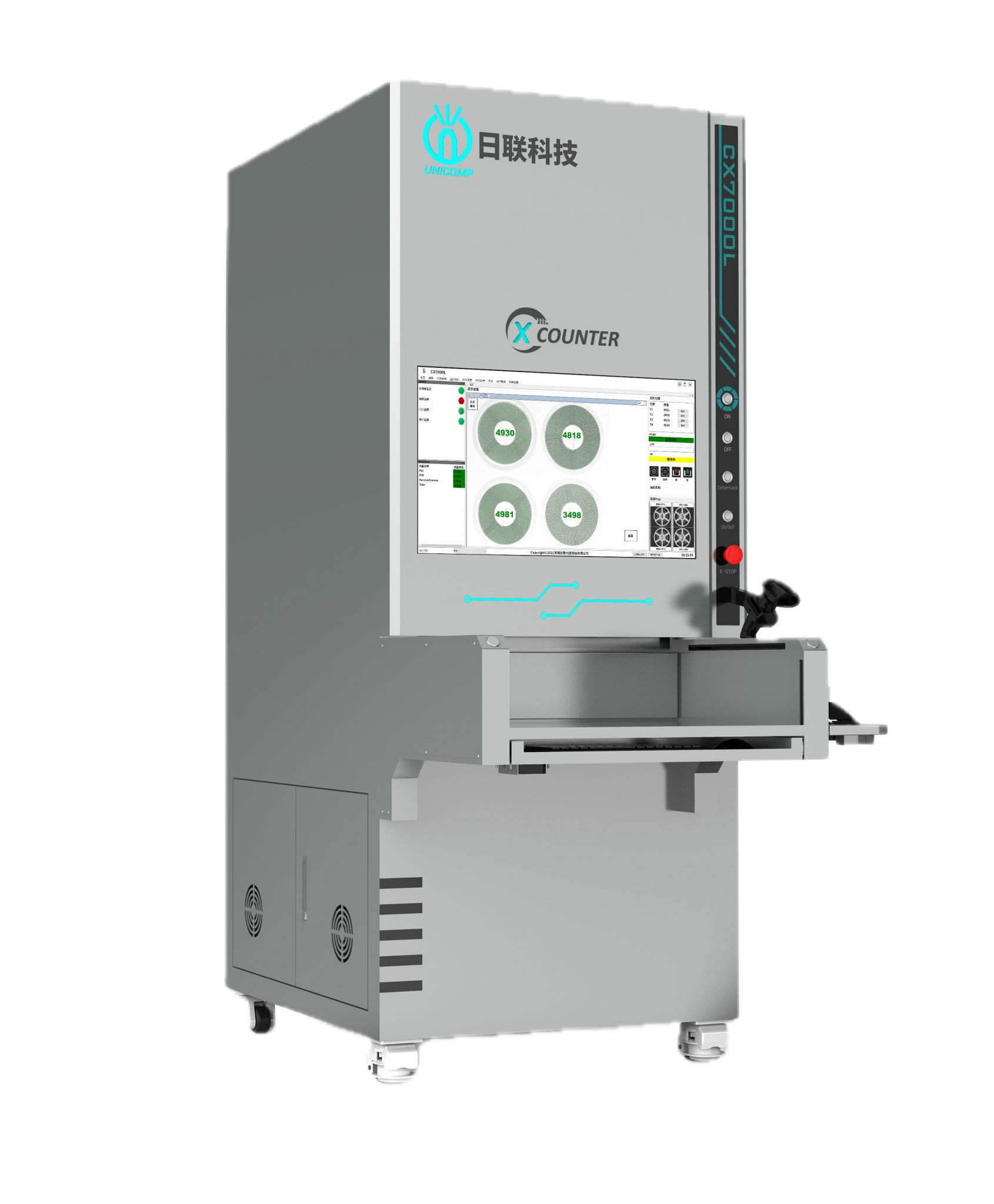

The CX7000L Component Counter revolutionizes inventory management with high-speed, precision counting powered by X-ray technology. Say goodbye to manual and semi-automated reel counters—with advanced X-ray digital radiography, the CX7000L instantly and accurately determines the number of components on a single tray, streamlining production workflows.

Equipped with embedded sensors, the system automatically detects loaded reels, eliminating manual setup and reducing errors. Integrated safety light curtains ensure operator protection, maintaining a safe and efficient work environment.

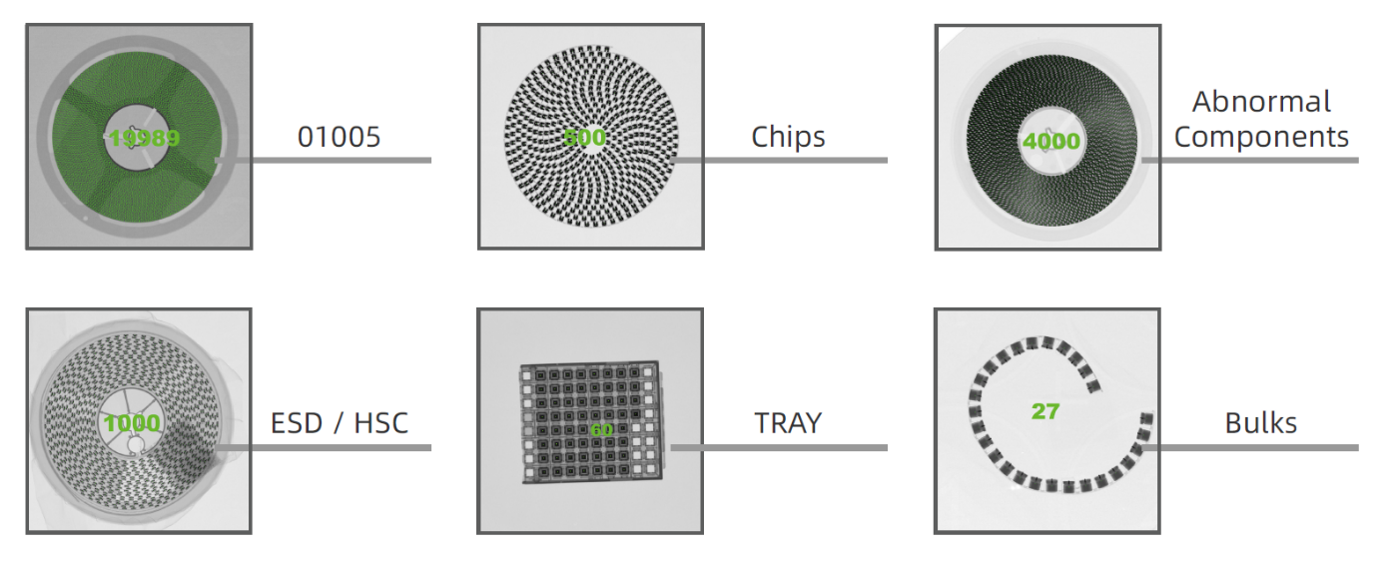

The CX7000L supports a wide range of packaging formats, including 7" and 13" reels, trays, and bulk components such as capacitors, ICs, QFNs, QFPs, resistors, and transistors, making it a versatile solution for various electronic manufacturing needs.

Key Features:

• AI-Powered Component Counting – Ensures high accuracy and efficiency
• Automatic Reel Detection – Embedded sensors identify reels instantly, reducing setup time
• Intelligent Barcode Reading System – Includes fingerprint access management for enhanced security
• Wide Compatibility & High Precision – Supports multiple packaging types for seamless inventory tracking

With its cutting-edge automation, intelligent recognition, and high-speed performance, the CX7000L is an essential tool for modern electronics manufacturing, improving efficiency, accuracy, and overall productivity.

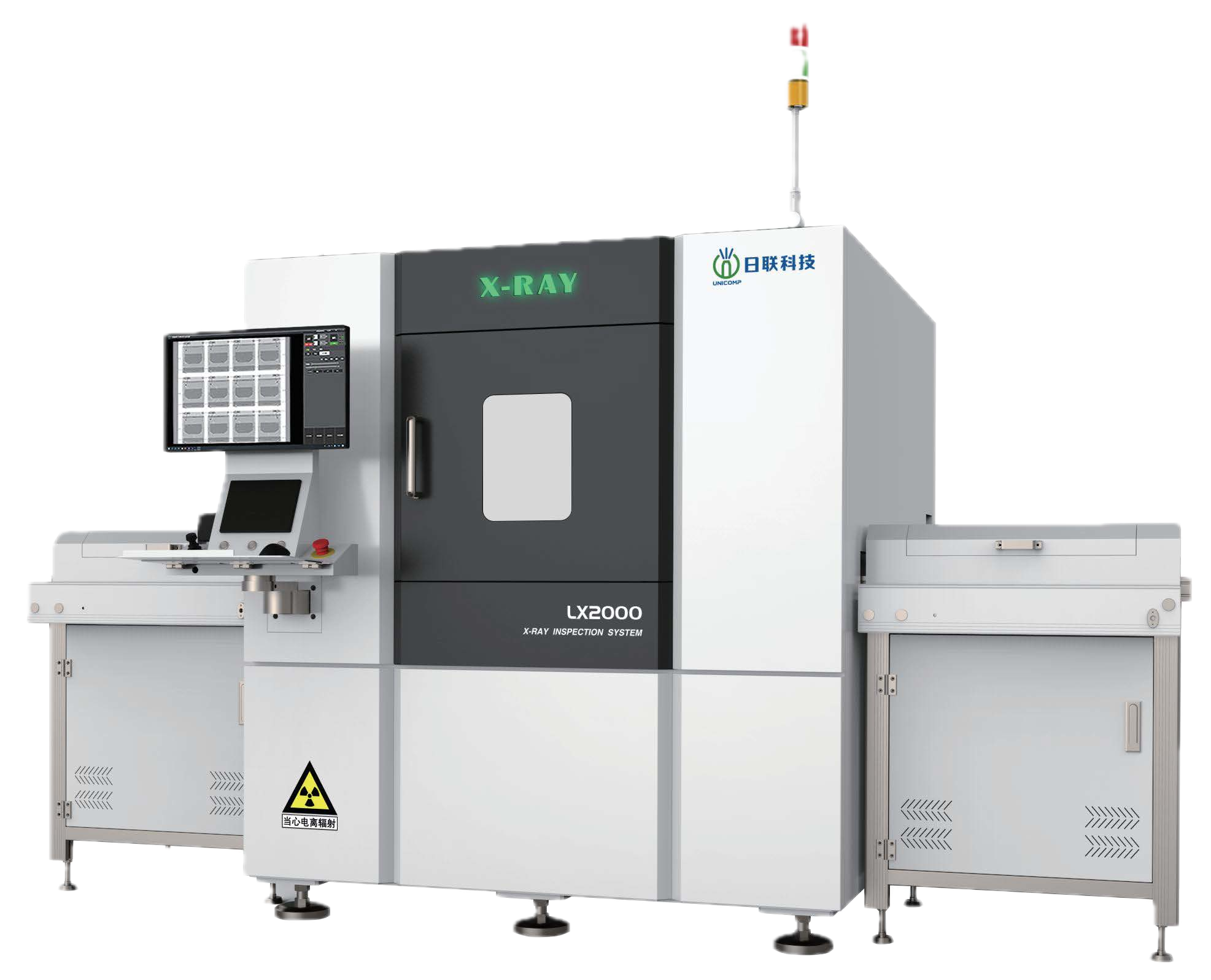

High-Performance Inline 3D AXI X-Ray Inspection System

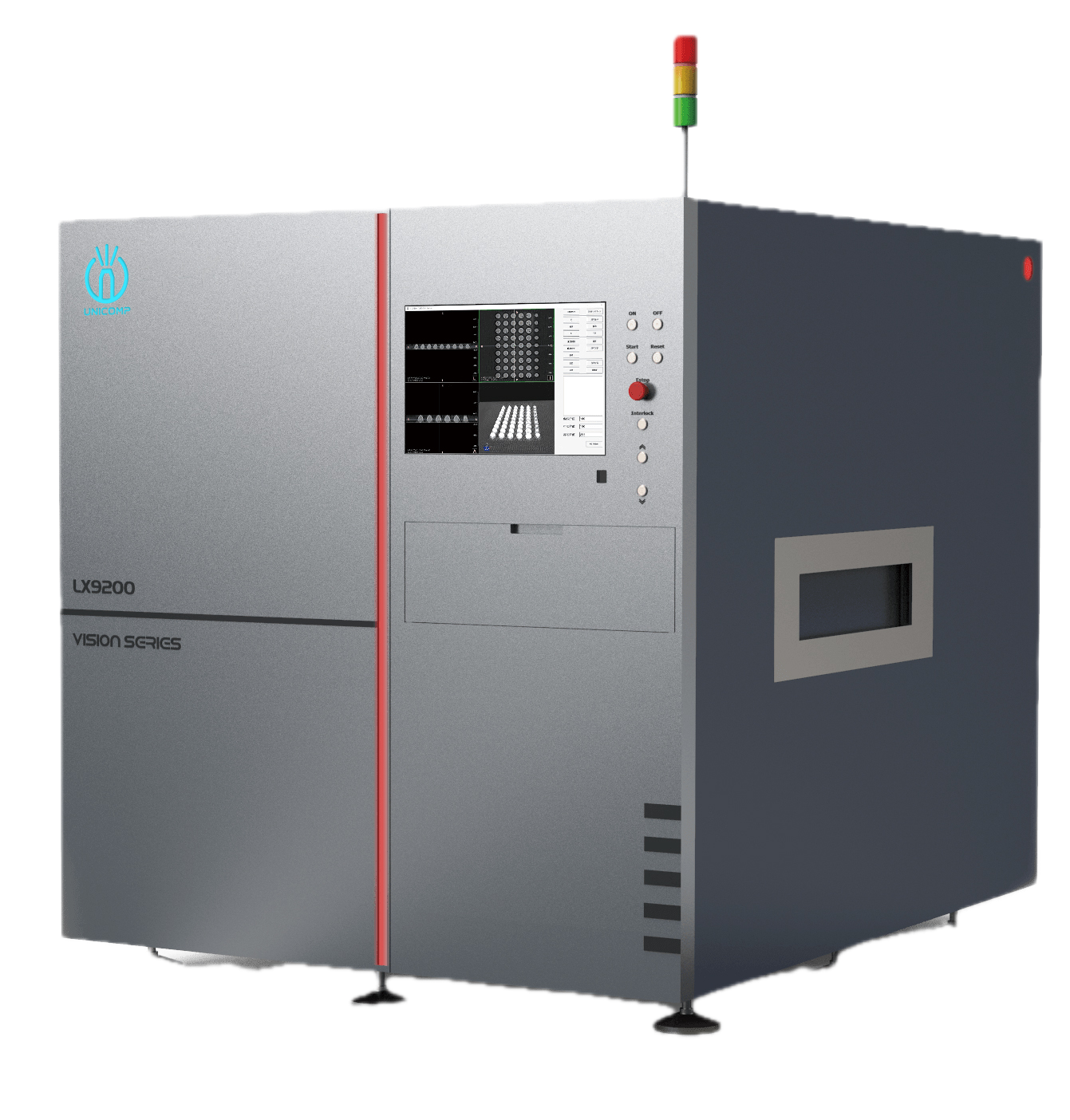

The LX9200 is a next-generation Inline 3D Automated X-ray Inspection (AXI) System powered by advanced PlanarCT technology, designed to meet the latest industry demands. This all-in-one solution delivers automated 2D, 2.5D, and 3D inspections, utilizing a high-speed flying image capture system with precision linear encoder motors for exceptional accuracy.

With an ultra-fine geometric resolution ranging from 3µm to 30µm, the LX9200 ensures precise defect detection for the most complex components. The sealed 130kV X-ray source guarantees long-term, maintenance-free operation, minimizing downtime and maximizing efficiency.

Unmatched Versatility & Accuracy

Whether identifying BGA short circuits in 2D, detecting Head-in-Pillow (HiP) defects in 2.5D, or conducting a full 3D analysis, the LX9200 provides fast, reliable, and highly detailed inspection results—making it an indispensable tool for modern production lines.

Key Features:

• Shot-on-the-Fly System – Minimizes vibration for superior image stability.
• Real-Time CT Reconstruction – Enables automatic slice analysis for enhanced defect detection.
• AI-Powered Detection Algorithm – Delivers intelligent, high-accuracy inspection.
• Customizable & High-Speed Solutions – Adapts to specific production needs with exceptional efficiency.
• 24/7 Global After-Sales Support – Ensures seamless operation and continuous assistance.
• Automatic Press-Fit Detection – Identifies defects with pinpoint precision.
• Advanced ROI Correction – Features X/Y/Z warpage correction for optimized accuracy.

The LX9200 redefines automated X-ray inspection, providing manufacturers with a powerful, precise, and highly efficient solution for defect detection and quality assurance.

High-Precision Industrial CT Inspection System

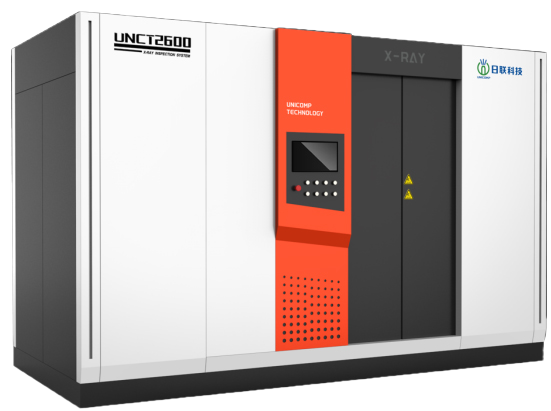

The UNCT2600 is a compact yet powerful industrial CT inspection system designed for high-precision imaging across various industries. Engineered to meet diverse inspection requirements, it is ideal for analyzing small metal castings, non-ferrous metals, lithium battery cells, electronic components, chips, geological samples, composite materials, biological specimens, and more.

Unmatched Imaging Precision & Penetration

Equipped with a 225kV open X-ray source, 320W power, and an ultra-fine <4µm focal spot, the UNCT2600 detects even the smallest defects while ensuring high-resolution penetration of denser materials.

Leveraging advanced Cone-Beam CT technology and helical scanning, this system guarantees exceptional CT data quality, while Hexagon’s Volume Graphics voxel analysis package provides a versatile and comprehensive toolset for detailed data interpretation.

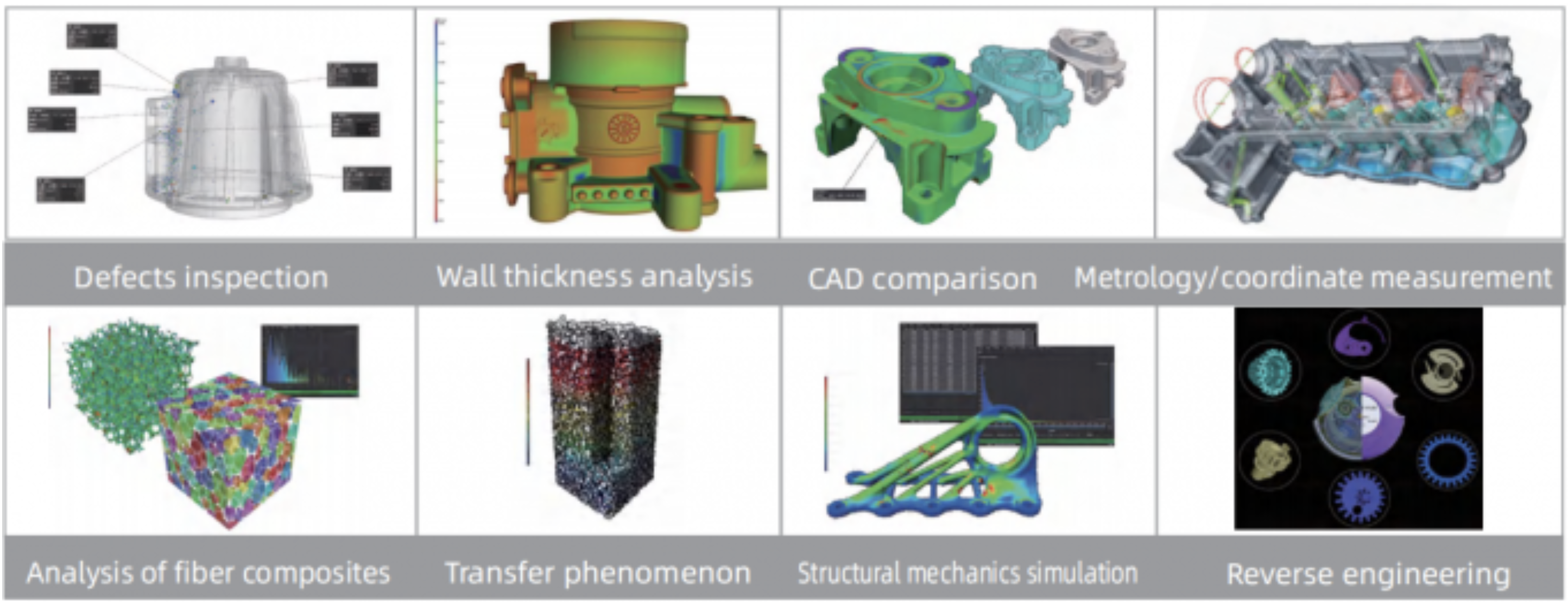

Advanced CT Analysis Capabilities:

• Wall Thickness Analysis – Ensures uniformity and structural integrity.
• Porosity & Inclusion Analysis – Detects voids and material inconsistencies.
• CAD Comparison – Validates design accuracy and component conformity.
• Paint & Segment Deep Learning Segmentation Tool – Enhances defect identification with AI-driven processing.
• Battery Overhang Analysis – Identifies structural deviations in battery cells.
• Fiber Composite Material Analysis – Examines fiber distribution for optimal material performance.

The UNCT2600 is the ultimate solution for precision-driven CT inspections, delivering high-resolution imaging, advanced data analytics, and unparalleled defect detection capabilities for industrial applications.
